| Brand Name : | F*C |
| Model Number : | FC-2100P |
| Certification : | CE,Rohs |
| Price : | Negotiable |
| Payment Terms : | TT |
| Supply Ability : | 1000pcs Per week |
| Delivery Time : | 2 weeks |
Description:
Detection of metallized and paper labels For thin or thick labels and booklets Easy operation: Teach-In For maximum dispensing precision at the labeler For maximum belt speeds (500 m/min) Versions available for direct positioning on the dispenser edge Very high switching frequency Autoteach / remote teach /key-lock function Large openings for booklets Versions available with integrated memory location for up to 63 different labels
Please see more details by our video.
Specifications for sticker Label sensor:
| Model | FC-2100P FC-2100 |
| Output type | PNP NO NC NPN NO NC |
| Detection distance | 2mm |
| Light source | 940nm infrared modulated light |
| Operating voltage | DC12-24V±10% |
| Current consumption | 15mA Max |
| Load current | 100mA Max at DC ;24V |
| Protection circuit | Reverse polarity protection and short circuit protection |
| Response time | 500us Max |
| Leakage current | <0.01mA no-load |
| Operating temperature | -10℃-+50℃(without icing or condensation) |
| Storage temperarure | -20℃~+60℃(No freezing ) |
| Ambient humidity | 35%-85% RH |
| Protection degree | IP66 |
| Meterial | Aluminium metal sheet |
| Wiring method | φ4mm×2M/4-wires/φ4mm×2M/M8 4-wires |
Features
1. Specially Design for label detection.
2. All-metal case design, high reliability and compatibility.
3. IP66 Water-proof .
4. Standard 2m pre-wired cable.
5. OEM order accepted, 18 months warranty.
Application for sticker Label sensor:
Such Kind of label sensor is widely used in packing machine for normal adhesive label detection, any questions, just feel free to inquiry us.

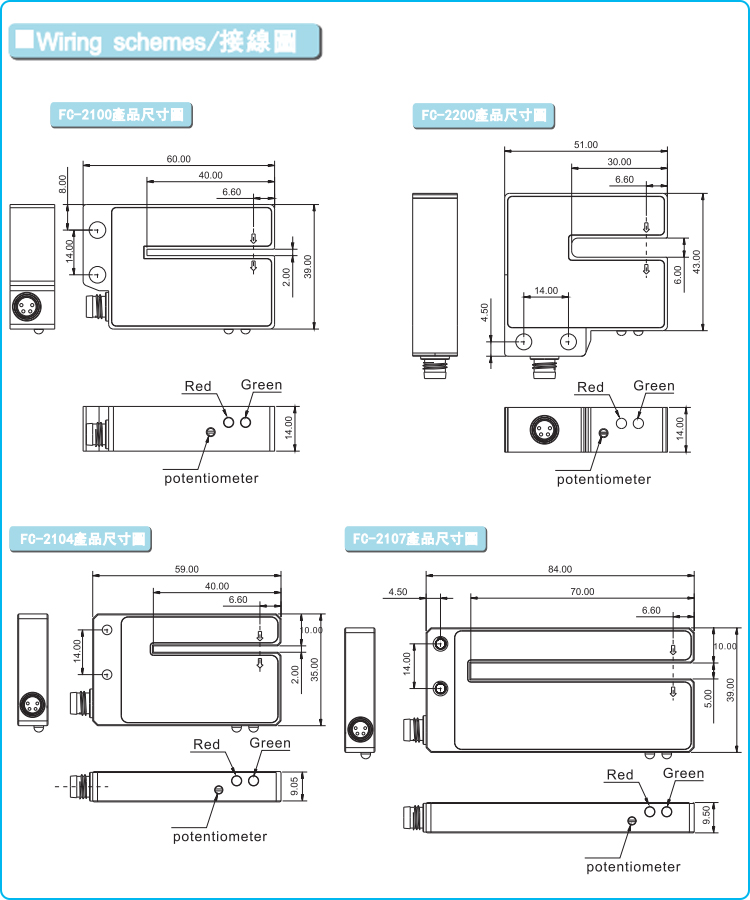

Label Sensor List
| Model | Slot width | Output | Application |
| FC-2100 | 2mm | NPN NO NC or PNP NO NC | Universal adhesive labels |
| FC-2104 | 2mm | NPN NO NC or PNP NO NC | Universal adhesive labels |
| FC-2107 | 5mm | NPN NO NC or PNP NO NC | Universal adhesive labels |
| FC-2110 | 5mm | NPN NO NC or PNP NO NC | Universal adhesive labels |
| FC-2200 | 6mm | NPN NO NC or PNP NO NC | Universal adhesive labels |
| FC-2600 | 2mm | NPN NO NC or PNP NO NC | Universal adhesive labels |
| FC-2300 | 3mm | NPN NO NC or PNP NO NC | Clear adhesive labels |
| FC-4100 | 2mm | NPN+PNP NO | Clear adhesive labels |
|
|
