Flat Small Inductive Proximity Sensor Suppliers 2mm NPN 12VDC Top Sensing
Application
Q8 flat inductive proximity sensor are used for high-speed cam and opertion table.
Feature
1.Competitive price
2.Front sensing and top sensing type are available
3.Integrated structure, waterproof, dustproof and oilproof.
4.5VDC proximity switch sensor,2Wires,different frequency proximity switch sensor.
Specification
| Model | Induction Direction | Output Method | ||
| F3N-08DN02-N R2M | Top Induction | NPN NO | ||
| F3N-08DN02-N2R2M | Top Induction | NPN NC | ||
| F3N-08DN02-PR2M | Top Induction | PNP NO | ||
| F3N-08DN02-P2R2M | Top Induction | PNP NC | ||
| Detection Distance | 2mm | |||
| Standard Detection Object | 8×8×1(iron) | |||
| Response Frequency | 600HZ (Different Frequency can be customized) | |||
| Hysteresis | within 10% of sensing distance | |||
| Operating Voltage | 12-24V DC | |||
| Current Consumption | Less than 8mA (No Load) | |||
| Load Current | 100mA Max@30V DC | |||
| Leakage Current | 1.1mA (No Load) | |||
| Residual Voltage | Less than 1.0V DC (No Load) | |||
| Protection circuit | Reverse circuit protection short circuit protection | |||
| Operating Temperature | -25~70℃ | |||
| Protection Degree | IP67(can customeize IP68) | |||
| Material | PBT and SUS | |||
| Wire Method | 1.dia 3×2M/3 wires 2 dia 3×2M/2 wires | |||

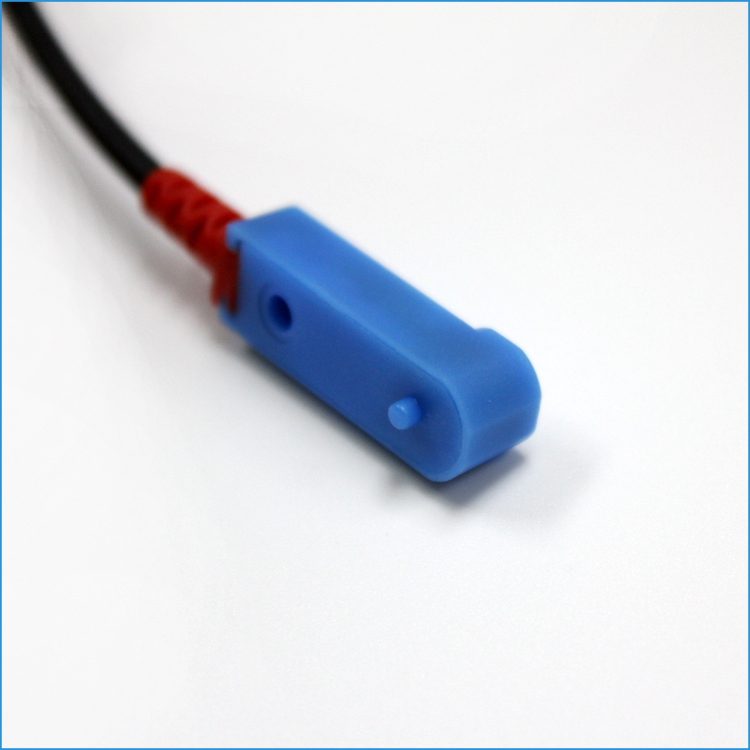

Product Display
Before-sales Services
1.24-hours online service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly. Email, Skype, Whatsapp or Online Message are acceptable.
2.Market information also will be provided. Since we are an experienced manufacturer of sensor, the market information about sensors will be offered as long as you need.
On-purchase Services:
1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;
2.All your problems or worries will be solved quickly by our sales. It is worth noting that the;prices of our sensors are quite negotiable. We have large discount for big quantity.
After-sales Services
1. The warranty periodis 18 months.
2. If we send the wrong parts to you, free replacement will be available.
3. As for the installation of the parts, if you have any questions, do not hesitate to contact us at any time.
Q:Are you sensors manufacturer?
A:Yes, over 30years' experience in sensors field.We can make more profit for you.
our product has CE certificate.
Q:Can I get samples for test?
A:Yes,we support free test samples and shipping cost at your side.
Q: What's your leadtime?
A:Generally speaking,we have stocks for 110 kind of different models and can ship at any time. If we don't have stock,our leadtime is 5-7 working days.We will pull in the production schedule if your demand is urgently.
Q: What's your payment term?
A:You can pay us by T/T, Paypal, Westunion.
Q:How do you arrange the shipment ?
A: We normally ship by Fedex, UPS and TNT, we are VIP of this courier and get 60% discount. We also can accept other ship method if there is an need.
12VDC Top Sensing 2mm NPN Flat Small Inductive Proximity Sensor
|
|
