| Brand Name : | F&C |
| Model Number : | F3N-15TN05-N |
| Certification : | CE, RoHS |
| Price : | negotiable |
| Payment Terms : | Western Union, T/T |
| Supply Ability : | 10000Pcs Per Month |
| Delivery Time : | 10days after depsite |

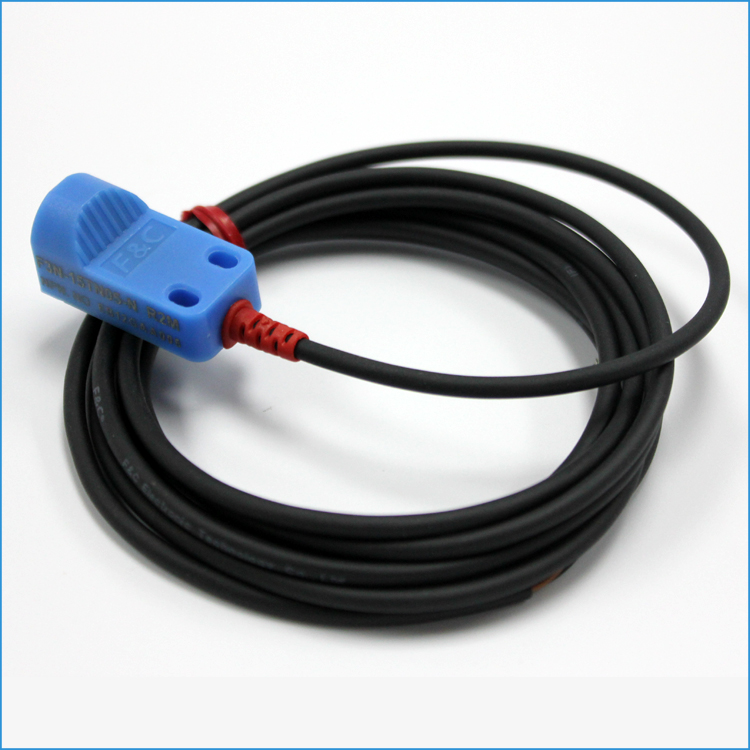

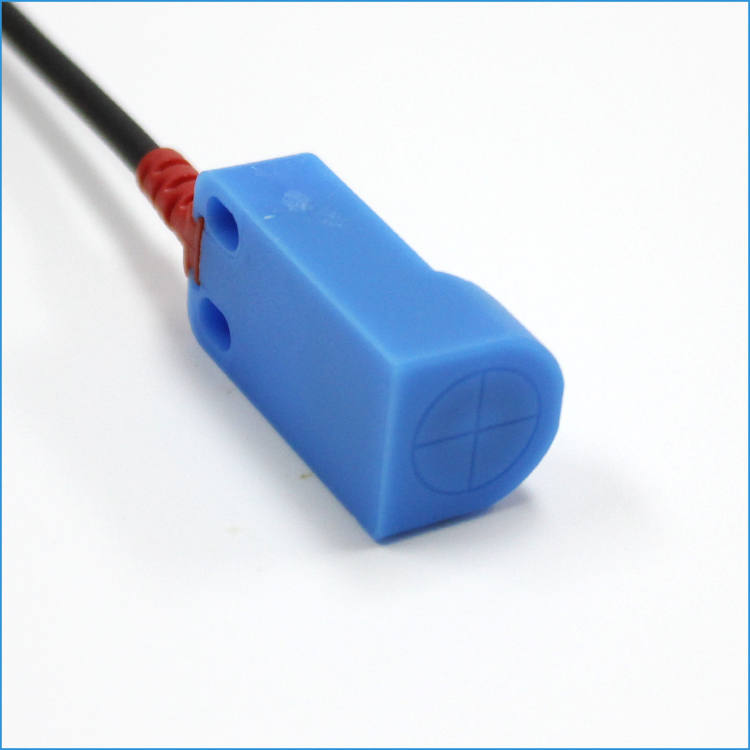

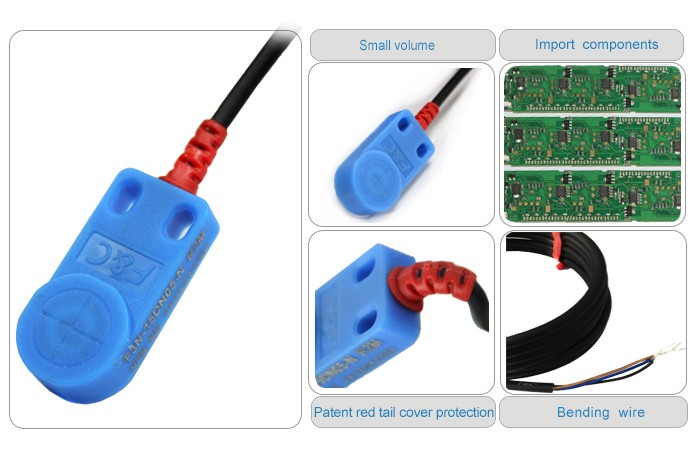

Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
1. Easy to install with limited space.

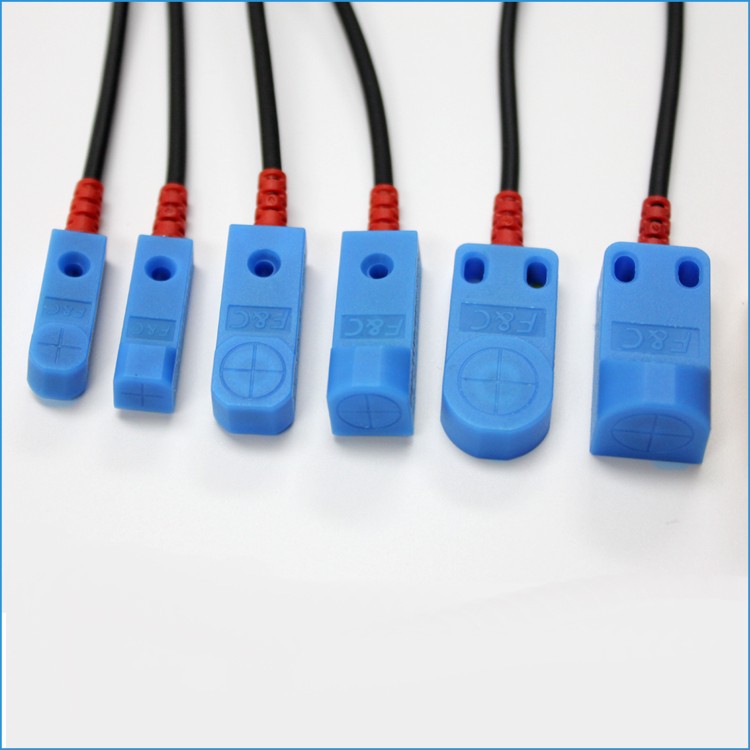

2. Many models for choice like top sensing, front sensing.
3. High quality usage to resistant oil, water,dust.
4. OEM order accepted.
| Small inductive position sensor | |
| Induction Direction | Model |
| Front induction | F3N-15TN05-N R2M F3N-15TN05-N2 R2M F3N-15TN05-P R2M F3N-15TN05-P2 R2M F3N-15TN05-B R2M F3N-15TN05-B2 R2M |
| Above induction | F3N-15DN05-N R2M F3N-15DN05-N2 R2M F3N-15DN05-P R2M F3N-15DN05-P2 R2M F3N-15DN05-B R2M F3N-15DN05-B2 R2M |
| Detection distance | 5mm |
| Recommand distance | 4mm |
| Standard sensing object | 15*15*1(iron) |
| Response frequency | 600Hz |
| Hysteresis | nomorethan10%Detectiondistance |
| Operatingvoltage | 12-24VDC10%/(customize 5V) |
| Current consumption | less than 10mA |
| Load current | 24V 100mA Max |
| Leakage current | less than 0.01mA No-load |
| Residual voltage | less than 1.0VDC |
| Operating Temperature | -25 TO +70 |
| Waterproof degree | IP67 |
| Material | ABS |
| Wiring method | φ2.8×2M/3-wires φ3×2M/3-wires |
1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.
2. For small quantity, We will Ship our product to you by express.
3. For mass production, We will ship our product to you by Air or sea.
|
|
