| Brand Name : | F&C |
| Model Number : | FKCT10-N |
| Certification : | CE,RoHS |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000 Pcs Per month |
| Delivery Time : | 10days after receiving the deposit |

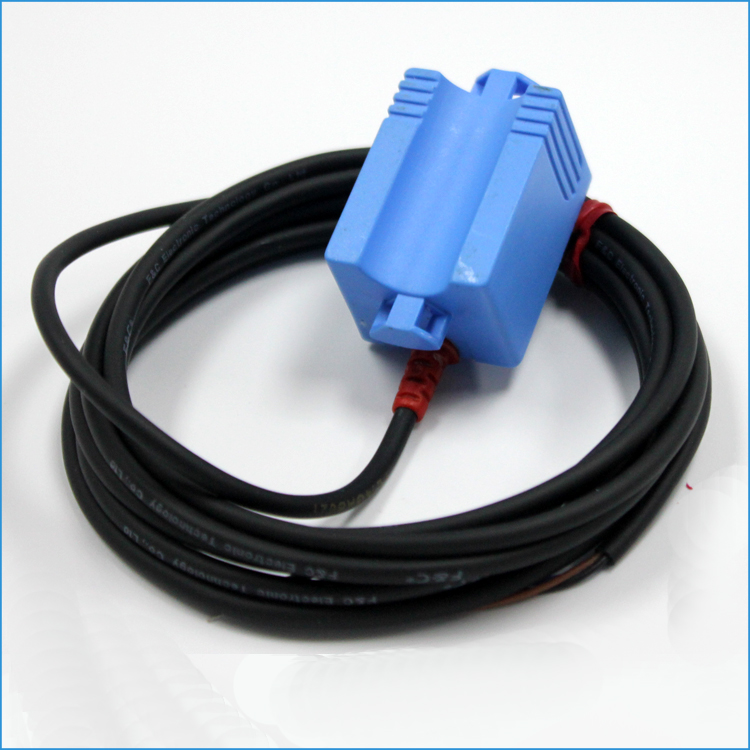

2mm Pipeline Capacitive Sensor 12 V PNP Normal Open Detection Sensor
Feature of FKCT level detection capacitive proximity switch
1.13mm,26mm two detection diatance to select.

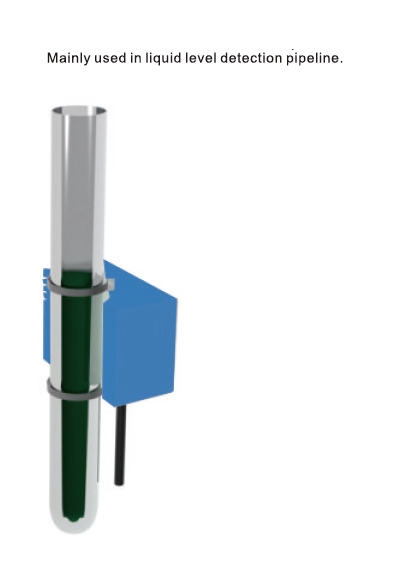

2.Mainly used in liquid level detection pipeline.
3.Detection distance and sensitivity can be adjusted.
4.The product with connector can be customized.
5.Not affected by bubbles and liquid color.
| NPN NO | FKCT10-N | FKCT15-N |
| NPN NC | FKCT10-N2 | FKCT15-N2 |
| PNP NO | FKCT10-P | FKCT15-P |
| PNP NC | FKCT10-P2 | FKCT15-P2 |
| Applicable pipeline | 8-12mm | 12-26mm |
| Response frequency | 200Hz | |
| Hysteresis | ≤10% detection distance | |
| Operating voltage | 12-24VDC 10% | |
| Current consumption | <10mA | |
| Load current | 24V 100mA Max | |
| Leakage current | <0.01mA No-load | |
| Offset Voltage | <1.0VDC at 100mA | |
| Operating Temperature | -25 to +70 degree | |
| Waterproof degree | IP66 | |
| Meterial | PBT | |
| Wiring method | φ3×2M/3-wires | |
12mm Pipeline Capacitive Proximity Sensor dimension drawing.
